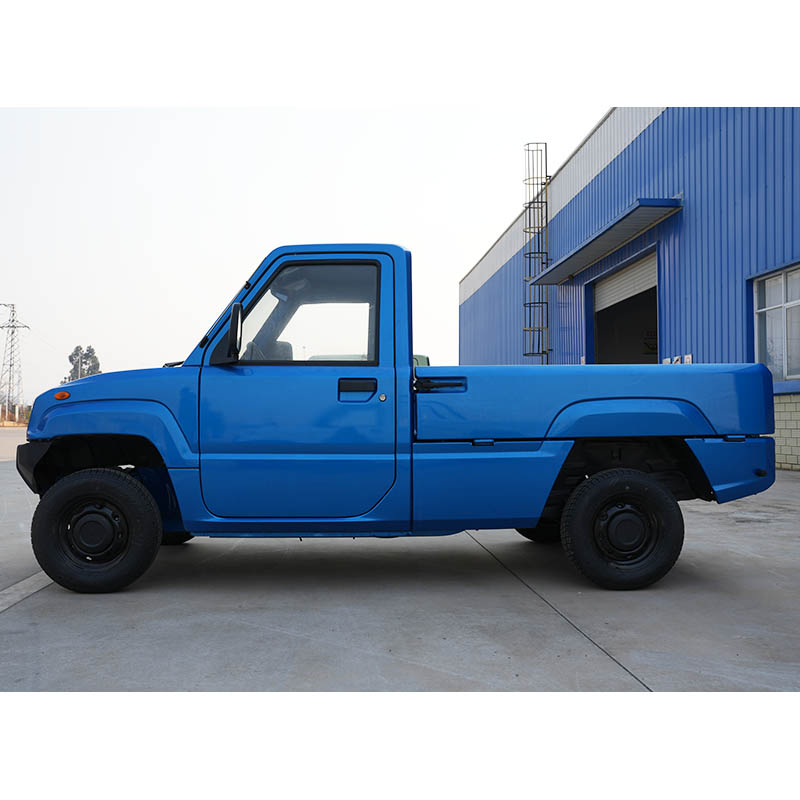

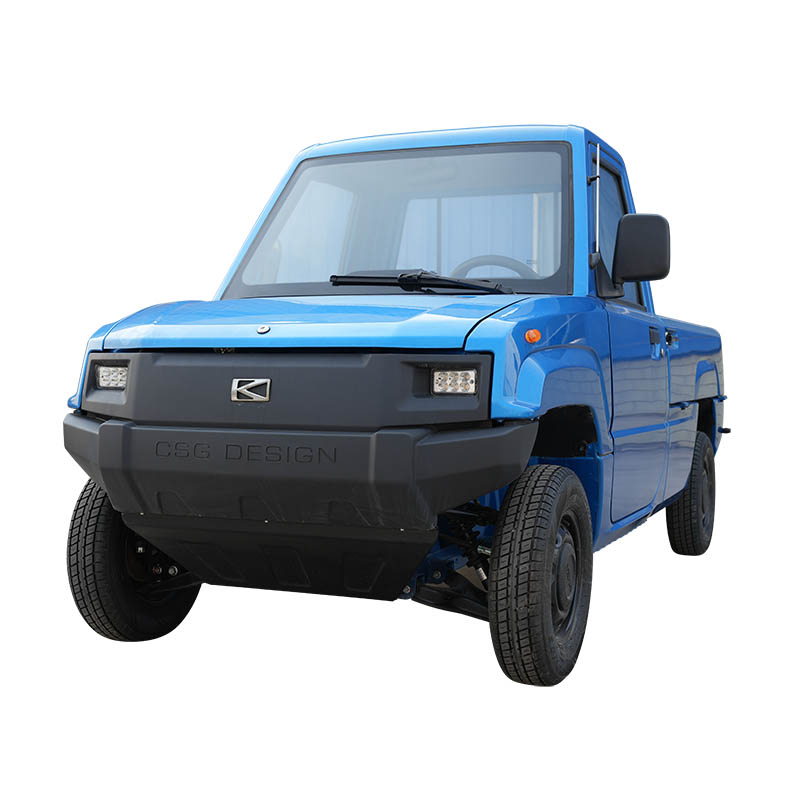

The Mini Low Speed Electric Pickup for Transportation is a compact, low-speed electric mini-truck designed for urban short-distance transportation and logistics. It features a small footprint and excellent maneuverability, making it well-suited for navigating narrow city streets and congested urban environments. This electric mini-truck is a sustainable and efficient solution to meet various logistics needs.
Compact Design: The Mini Low Speed Electric Pickup’s small size makes it perfect for zipping through busy urban areas and easily parking in tight spaces, enhancing operational convenience.
Electric Power: Using an electric power system, this vehicle produces zero emissions, making it environmentally friendly and reducing air pollution.
Low-Speed Performance: This small pickup is designed specifically for low-speed urban transportation, suitable for city streets with speed restrictions, reducing the risk of accidents.
Versatile Applications: The Mini Low Speed Electric Pickup is suitable for a variety of purposes, including small-scale cargo transport, urban cleaning tasks, warehouse handling, and short-distance transportation within the city.
Efficient Operations: Low operating costs, minimal maintenance expenses, and relatively low charging costs provide an economical solution.
Eco-Friendly Materials: The use of renewable and recyclable materials reduces environmental impact, contributing to sustainability.
Comfortable Riding Experience: Spacious seating ensures the comfort of both the driver and passengers.
Safety Features: The Mini Low Speed Electric Pickup is equipped with basic safety features, including a braking system, lighting system, and seat belts, ensuring road safety.
The Mini Low Speed Electric Pickup for Transportation is a versatile, eco-friendly, and compact electric vehicle that offers a sustainable and efficient solution for urban logistics and transportation needs. Its small footprint and eco-friendly characteristics make it an ideal choice for adapting to modern urban living. Whether used for commercial transportation or urban cleaning tasks, this electric mini-truck will meet your requirements.
|
Vehicle status |
72V 4KW |
72V 5KW |
|
Right hand drive |
○ |
○ |
|
Length×Width×Height (mm) |
3475×1375×1550 |
3475×1375×1550 |
|
Container internal dimensions |
1620X1245X300 |
1620X1245X300 |
|
Wheelbase (mm) |
2315 |
2315 |
|
Front track (mm) |
1195 |
1195 |
|
Rear track (mm) |
1185 |
1185 |
|
Front suspension (mm) |
455 |
455 |
|
Rear suspention (mm) |
705 |
705 |
|
Curb weight (kg) |
710 |
710 |
|
Load quality (kg) |
500 |
500 |
|
Seats No. |
2 |
2 |
|
Gross weight (kg) |
1340 |
1340 |
|
Performance parameters |
||
|
Max speed (km/h) |
40 |
40 |
|
Acceleration time s (0-40km) |
15 |
15 |
|
Max grade |
0.25 |
0.25 |
|
Min turning diameter (m) |
≤9 |
≤9 |
|
Maximum angle |
36.3(outer wheel）/42(inner wheel） |
36.3(outer wheel）/42(inner wheel） |
|
Approach angle (°) |
≥55 |
≥55 |
|
Departure angle (°) |
≥35 |
≥35 |
|
Bauchfreiheit (mm, no load) |
≥150 |
≥150 |
|
Body structure |
||
|
Cab |
Integral sheet metal |
Integral sheet metal |
|
Tube doors |
– |
– |
|
Cargo box（bed） |
Triple folding gate |
Triple folding gate |
|
Battery/motor parameters |
||
|
Battery type |
Maintenance-free |
Maintenance-free |
|
Battery specification(V/Ah） |
72V ,100Ah |
72V ,100Ah |
|
Battery optional |
○ 105Ah LFP |
○ 105Ah LFP |
|
Lithium electric heating plate |
○ |
○ |
|
Range (no load) (km) |
≥120 |
≥120 |
|
220V charging plug |
● |
● |
|
110~220V charging plug (wide voltage) |
○ |
○ |
|
Charging time (20%-100%) (h) |
8~10 |
8~10 |
|
Motor type |
AC asynchronous motor |
AC asynchronous motor |
|
Rated power (kW) |
4KW |
5KW |
|
Chassis/Wheel Braking |
||
|
Drive form |
RWD |
RWD |
|
Front suspension |
Double wishbone coil spring independent suspension |
Double wishbone coil spring independent suspension |
|
Rear suspension |
Vertical leaf spring (5 pieces) |
Vertical leaf spring (5 pieces) |
|
Drive axle |
Integral (speed ratio 12.76) |
Integral (speed ratio 12.76) |
|
Front brake |
Disc |
Disc |
|
Rear brake |
Drum |
Drum |
|
Rim |
12X4B（steel）● |
12X4B（steel）● |
|
Tire |
145 R12LT（radial tire）● |
145 R12LT（radial tire）● |
|
power-assisted steering |
○ |
○ |
|
Brake assist |
● |
● |
|
Inside/outside configuration |
||
|
Door lock |
Manual |
Manual |
|
Window |
Manual |
Manual |
|
Front Seat |
Primary/Secondary Independent Seats |
Primary/Secondary Independent Seats |
|
Rear seat |
– |
– |
|
Seat headrest |
○ |
○ |
|
Jump seats |
○ |
○ |
|
AC |
○ |
○ |
|
Towing |
○ |
○ |
|
Front receiver |
– |
– |
|
Interior rear view mirror |
● |
● |
|
Instrument |
Metric● |
Metric● |
|
Front searchlight |
○ |
○ |
|
Roof spotlight |
– |
– |
|
AVS Sound Module |
○ |
○ |
|
Side retro reflector |
● |
● |
|
Red reflective stickers |
○ |
○ |
|
Seat belt |
● |
● |
|
Seat belt certification |
DOT● |
DOT● |
|
Reverse image |
● |
● |
|
Mp5 |
7“MP5● |
7“MP5● |
|
Fender extensions |
– |
– |
|
Car cover |
○ |
○ |
|
Child lock |
– |
– |
|
Front bumper |
○ |
○ |
|
Rear bumper |
– |
– |
|
Pedal rack |
– |
– |
|
Roll cage |
– |
– |
|
Spare tire |
– |
– |
|
Charger plug |
China standard● |
China standard● |
|
VIN |
●right/○left |
●right/○left |
|
Spray wax |
○ |
○ |
|
Swatches |
● |
● |
|
Rubber Liner |
○ |
○ |
Note In addition to white, red, yellow do not add money, other colors for special colors need to add 300 RMB, charger plug if not the national standard will make up the difference, the difference in 20-100 RMB
“-” indicates that this configuration is not available. “○” represents optional items, which need to be selected and explained; ● Indicates the standard configuration item.
