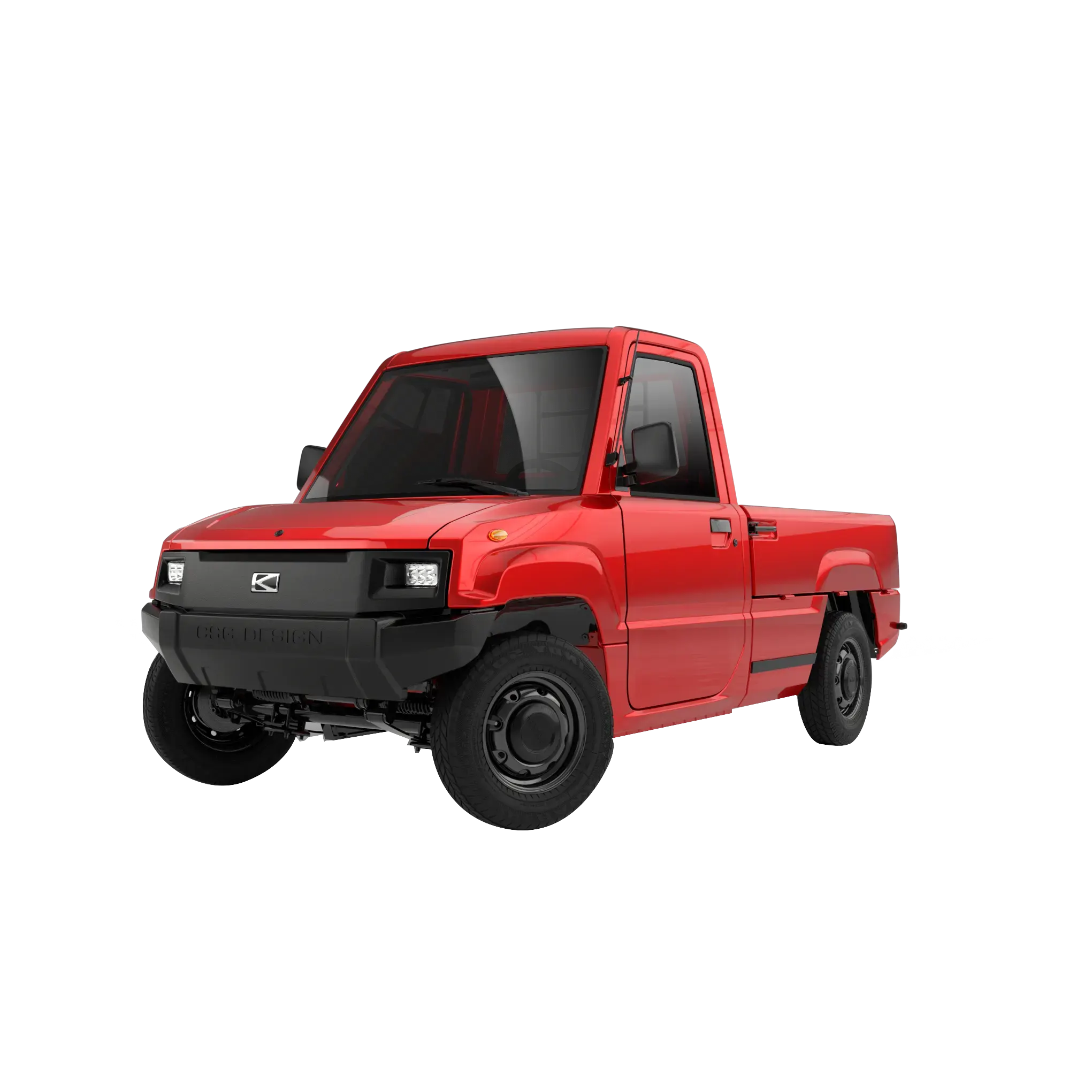

Classic Light EV Pickup Truck

PICKMAN ClassicPASSENGERModels, Features 5kW5kWBASIC SPECSVEHICLE DIMENSIONSHeight (mm/in)1,550 / 61.021,560 / 61.42Width (mm/in)1,375 / 54.131,340 / 52.76Length (mm/in)3,475 / 136.813,475 / 136.81Wheelbase (mm/in)2,315 / 91.142,495 / 98.23BED DIMENSIONSHeight (mm/in)300 / 11.81900 / 35.43Width (mm/......

Send Inquiry

Product Description

PICKMAN	Classic	PASSENGER
PICKMAN	Classic	PASSENGER
Models, Features	5kW	5kW
BASIC SPECS
VEHICLE DIMENSIONS
Height (mm/in)	1,550 / 61.02	1,560 / 61.42
Width (mm/in)	1,375 / 54.13	1,340 / 52.76
Length (mm/in)	3,475 / 136.81	3,475 / 136.81
Wheelbase (mm/in)	2,315 / 91.14	2,495 / 98.23

BED DIMENSIONS
Height (mm/in)	300 / 11.81	900 / 35.43
Width (mm/in)	1,245 / 49.02	1,315 / 51.78
Length (mm/in)	1,620 / 63.78	400 / 15.75

Vehicle Gross Weight (kg/lb)	710 / 1565.28	775 / 1708.58
Payload (kg/lb)	500 / 1102.31	150 / 330.69
Towing Capacity (kg/lb)	2,000 / 4409.26	1,000 / 2204.62
Passengers	2	4

PERFORMANCE
Top Speed (km/h / m/h)	~50 / ~31.3	~50 / ~31.3
Maximum Grade (%)	20	20
Minimum Turning Radius (m / ft)	≤9 / 27	≤9 / 27
Minimum Ground Clearance (mm/in)	≥150	≥150
Approach Angle	≥55	≥55
Departure Angle	≥35	≥35

BATTERY & MOTOR
Battery Specs	76.8V / 120Ah	76.8V / 120Ah
Battery Type	Lithium	Lithium
Charging Time	5~8h	5~8h
Maximum Driving Range (km/m)	150 /94	150 /94
Motor Type	AC	AC
Rated Power	5kW	5kW
Motor Controller	CAN	CAN

BODY STRUCTURE
Cabin Body	Stamped Sheet Metal	Stamped Sheet Metal

CHASSIS & WHEELS
Drive Type	Rear Wheel Drive	Rear Wheel Drive
Front Suspension	Double Wishbone Independent Suspension	Double Wishbone Independent Suspension
Rear Suspension	Leaf Plate Suspension (5 pieces)	Leaf Plate Suspension (5 pieces)
Drive Axle	Integrated	Integrated
Brake (front/rear)	Discs / Drums	Discs / Drums
Wheel Hub	12X4B（Steelies 4X114.3）	13x4.5B (Alloy 4X114.3)
Tire Specification	145 R12LT	13x4.5B (Alloy 4X114.3)
Steering Type	Rack & Pinion	Rack & Pinion
Steering Assist	▲	▲
Brake Assist	▲	▲

STANDARD COVERAGE & EQUIPMENT
Bed Type	Triple Gate	Single Gate / Pass Through
Seats	Dual Adjustable with Headrests	4-Way Adjustable Seats with Headrests and storage pockets
Rear Seats	✕	Rear Foldable Bench Seating with Headrests
Seatbelt	Driver (3Point) ▲ Passenger (3Point) ▲	Front (3Point) ▲ Rear▲
Seatbelt	Driver (3Point) ▲ Passenger (3Point) ▲	Front (3Point) ▲ Rear▲
Sunvisor	Driver / Passenger	Driver / Passenger

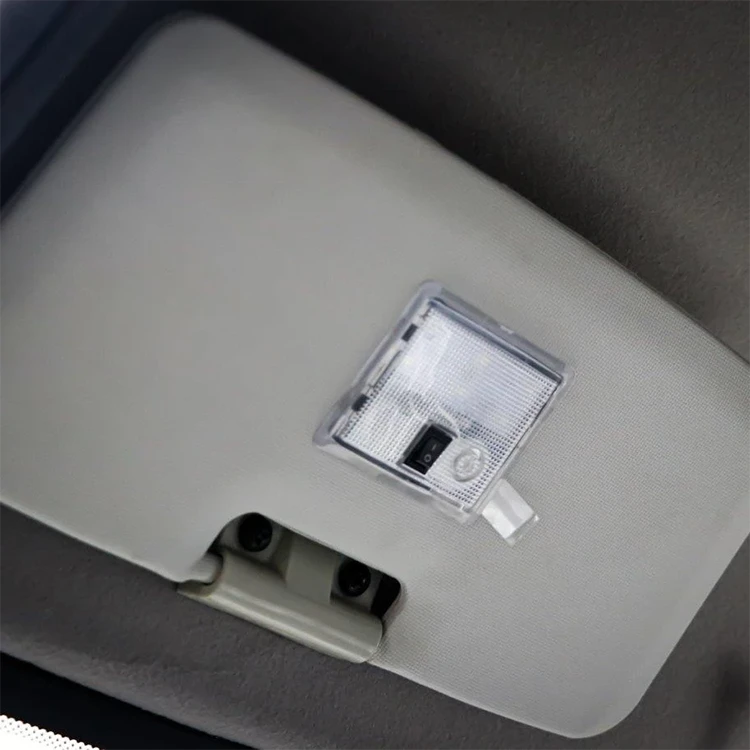

Cabin Light	Integrated within Sunvisors	Integrated within Sunvisors

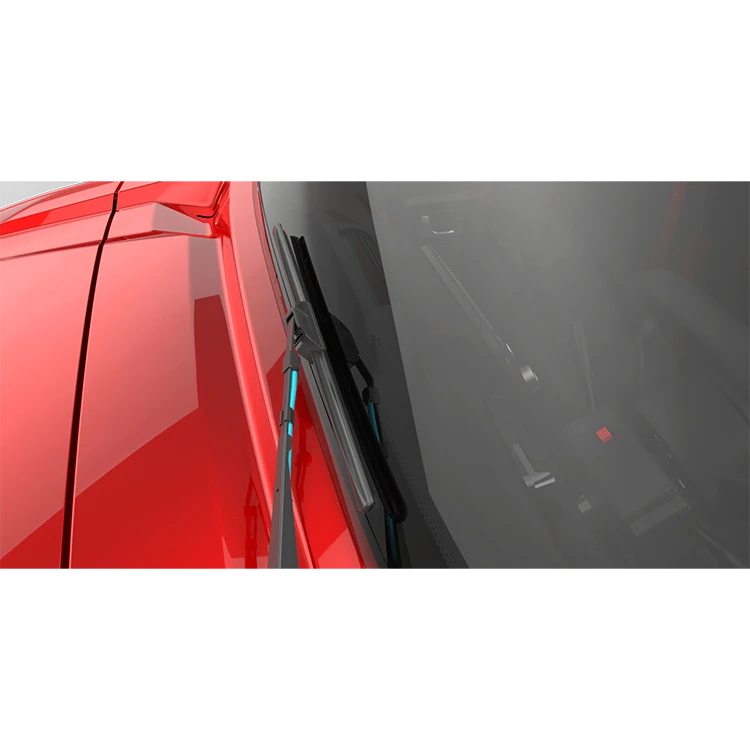

Wiper	Driver + Washer	Driver + Sprinkle

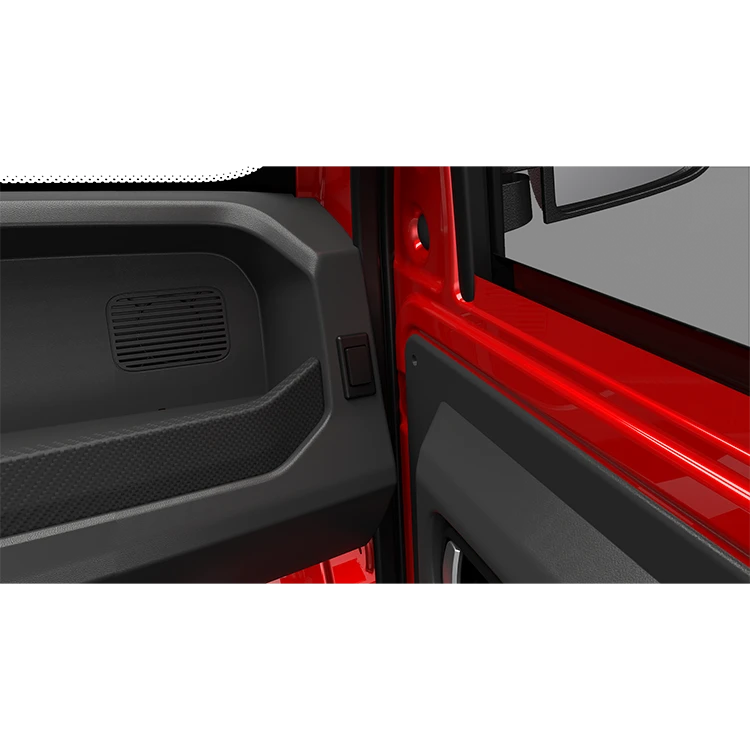

Window	Manual	Power

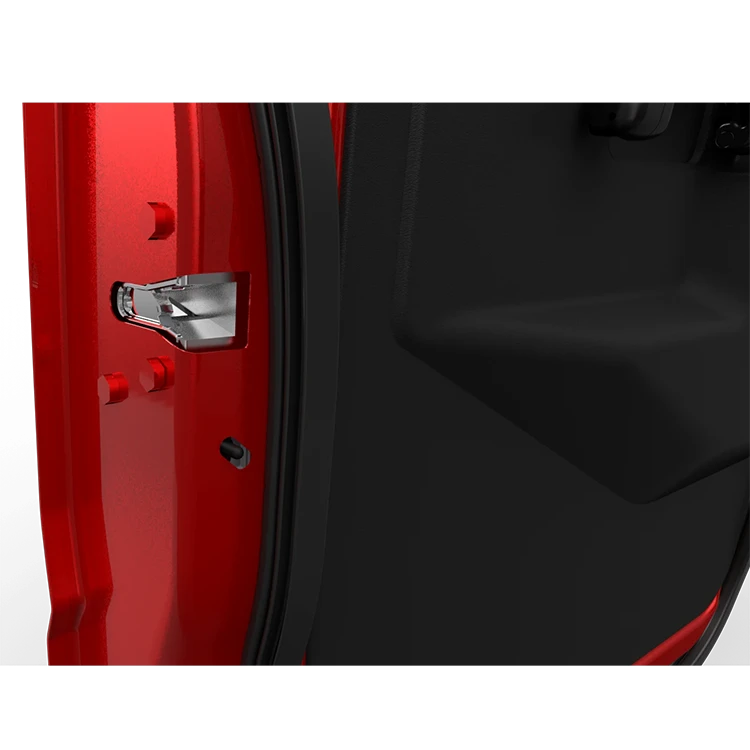

Door-locks	Manual	Power
AC	△	△

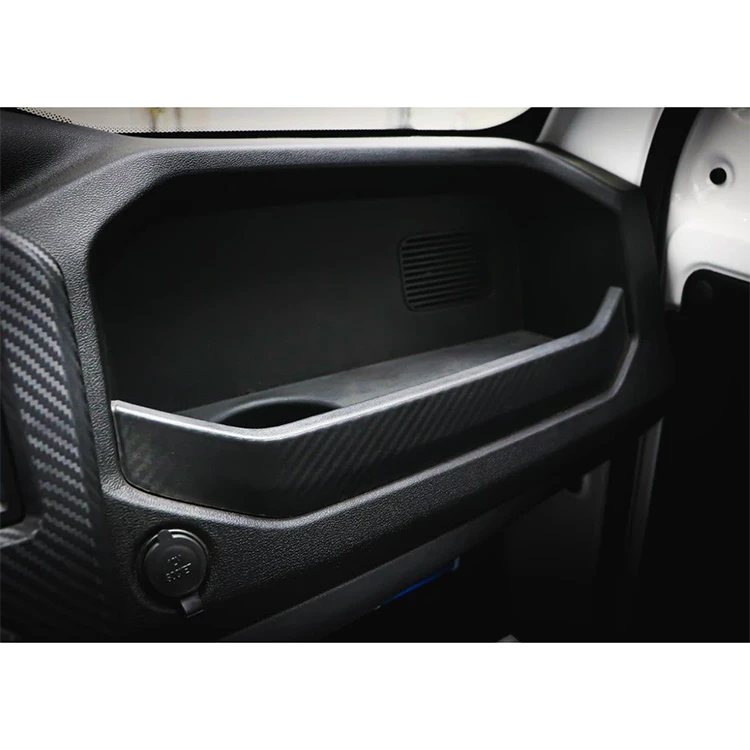

Front Storage (liters/cuft)	20 / 0.71	20 / 0.71

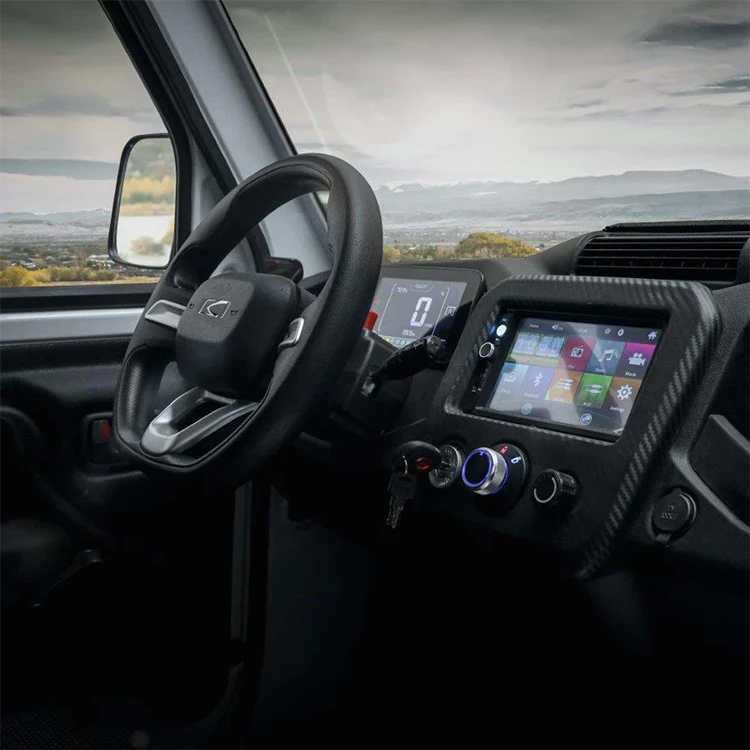

Infotainment Display	▲	▲
Front / Rear lights	LED	LED
USB Outlets	▲	Front ▲ / Rear ▲

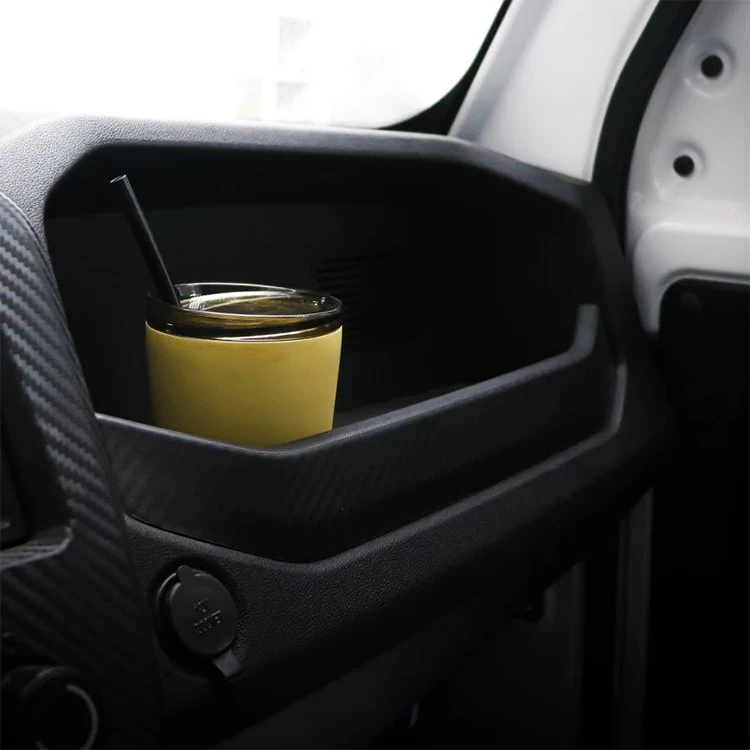

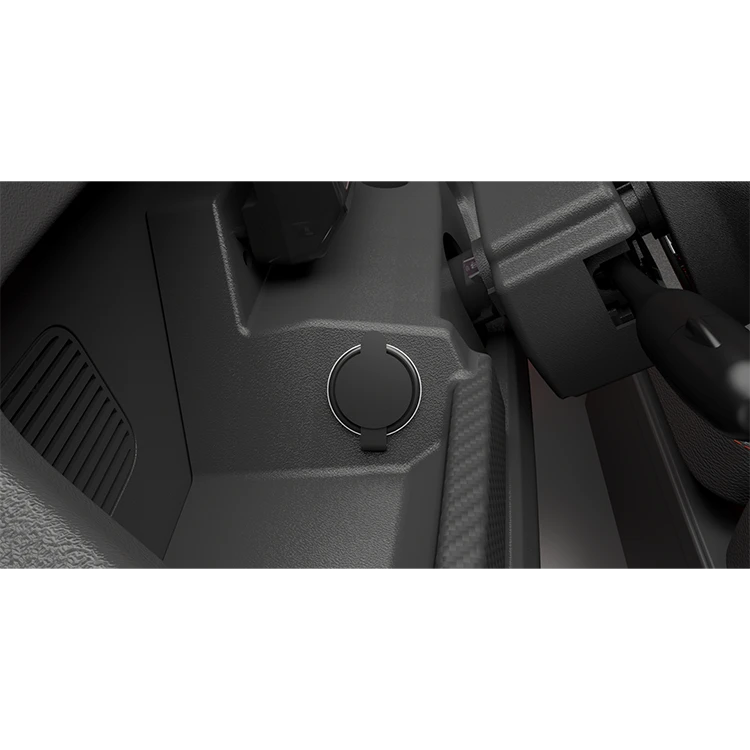

DC Socket	2, Std.	2, Std.
Rearview Mirror	▲	▲

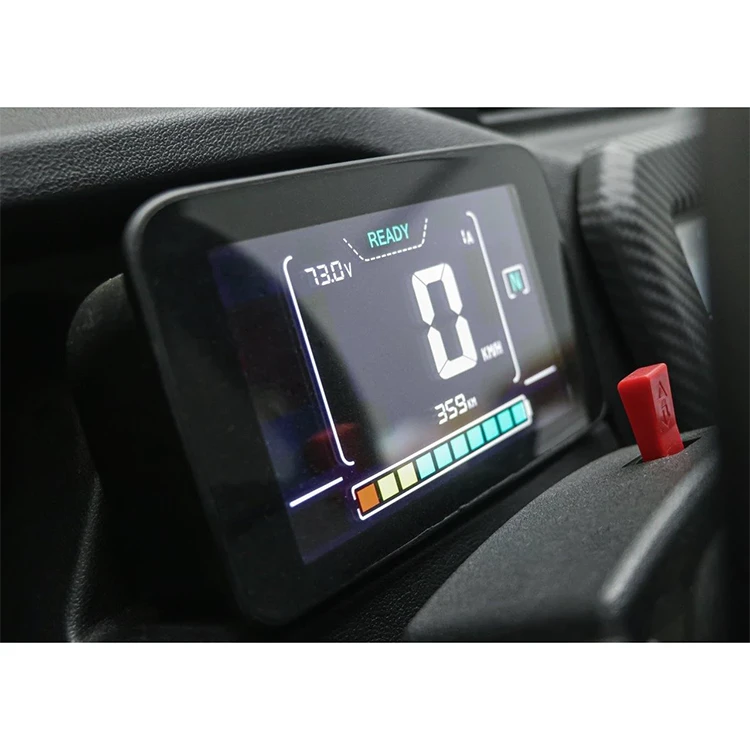

Instrument Type	LCD Digital Cluster	LCD Digital Cluster
Charger	▲	▲
Rear License Plate Light	▲	▲
Backup Camera	▲	▲
Child Lock	✕	▲
Front Bumper Guard	△	△
License Plate Lights	▲	▲
Bed wear-resistant material	▲	▲

Options Available Stateside	Front Bumper Guard，Alloy wheels, various tires and towing package

YUNNEI KAIYUN MOTORS
Warranty	12 months parts only（Lithium battery warranty is 36 months）

▲- Standard Equipment △- Optional Equipment X- Not Available
